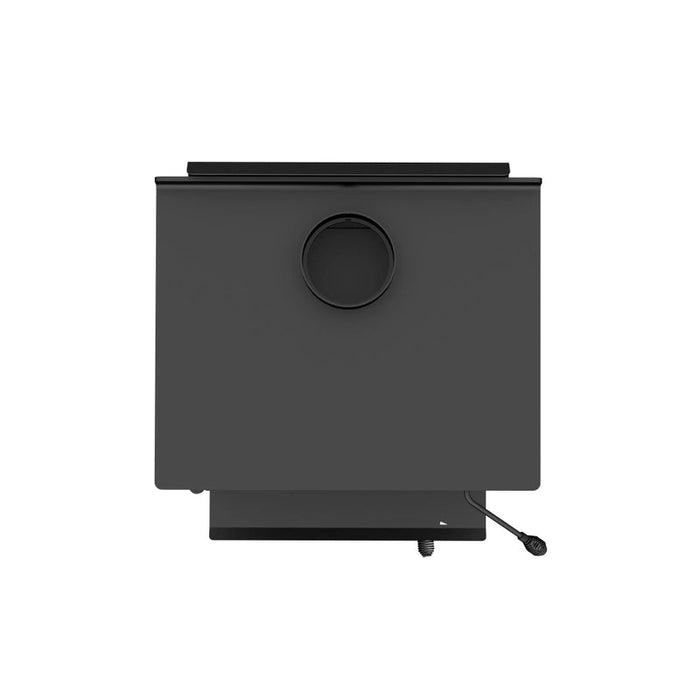

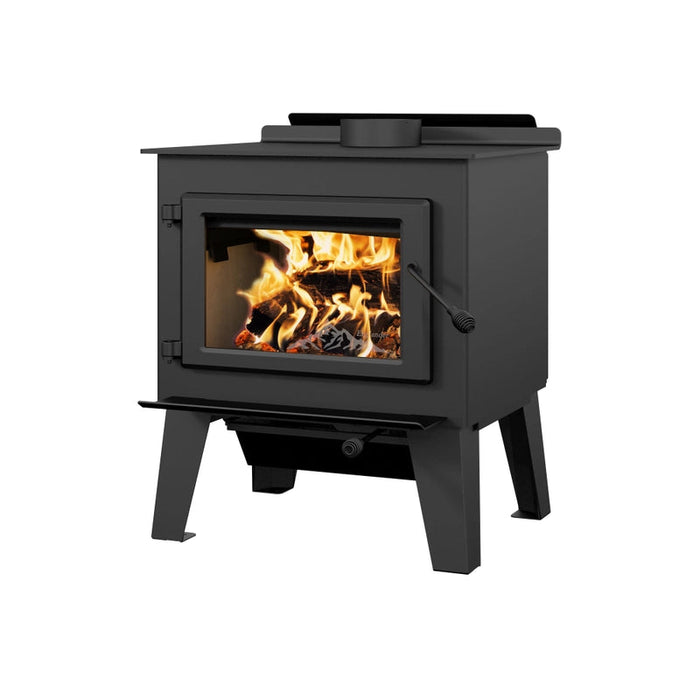

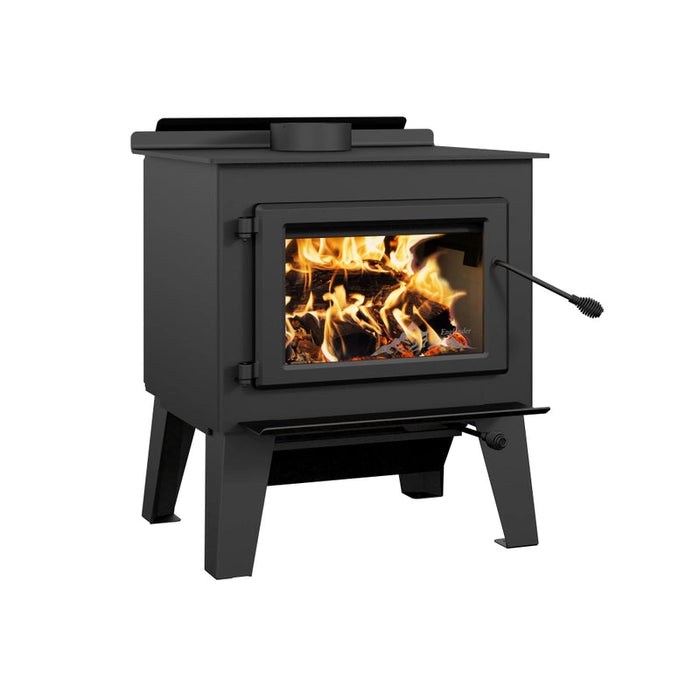

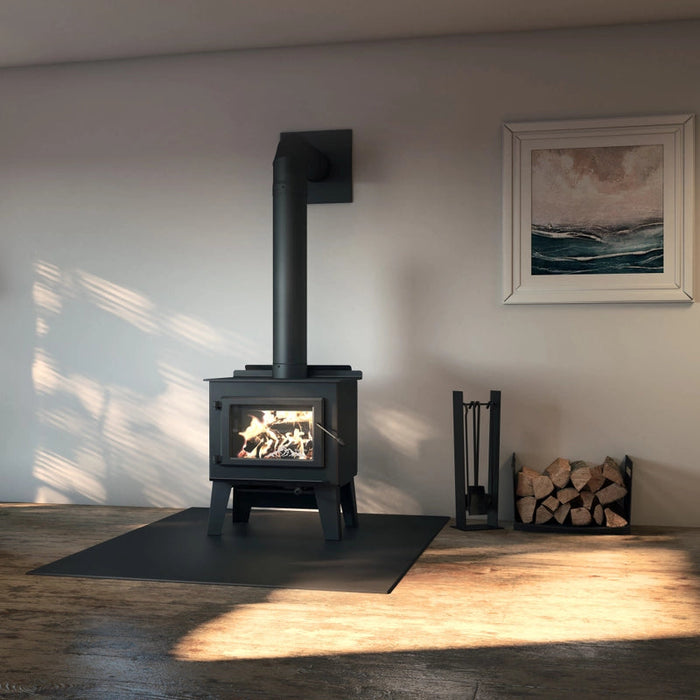

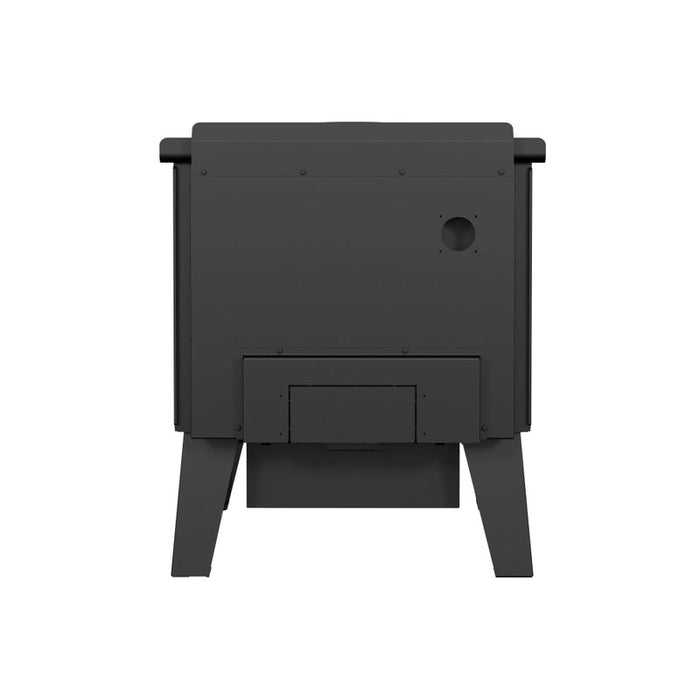

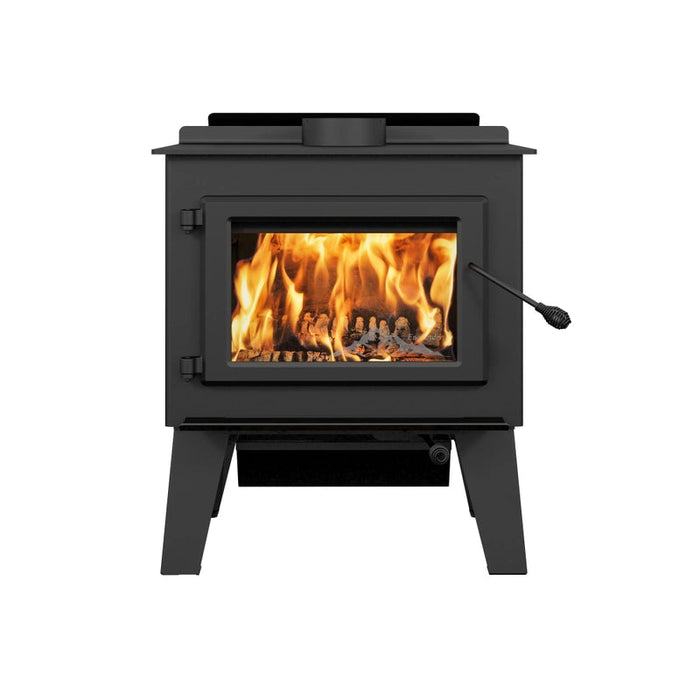

England's Stove Work Blue Ridge 300L Wood Stove
England's Stove Work Blue Ridge 300L Wood Stove
Product Description
Ideal for spaces up to 2,100 ft², this large non-catalytic wood stove produces up to 75,000 BTU/h and emits only 2.3 g/h of fine particles. The unit is equipped with a top heat exchanger that redirects heat to the front of the unit.
Included: legs, ash drawer & lip, air intake damper & rear air deflector
- High efficiency 2.4 ft³ firebox
- Up to 8 hours burn time
- Steel top reinforced with a stainless steel heat shield
- Cast iron door and ceramic glass
- EPA certified
- Proudly made in USA
- Non-catalytic combustion system
- Certified for mobile home and alcove installation
- Qualifies for the 30% US tax credit
Appliance performance
|
Fuel type |
Dry cordwood (16" recommended) |
|
Recommended heating area |
500 - 2,100 ft² |
|
Overall firebox volume |
2.4 ft³ |
|
EPA loading volume |
1.95 ft³ |
|
Maximum burn time |
8 h |
|
Maximum heat output-dry cordwood |
75,000 BTU/h (22 kW) |
|
Minimum overall heat output rate |
14,200 BTU/h (4.16 kW) |
|
Maximum overall heat output rate |
44,500 BTU/h (13.04 kW) |
|
Average overall efficiency-dry cordwood (HHV) |
72 % |
|
Average overall efficiency-dry cordwood (LHV) |
77 % |
|
Optimum efficiency |
79 % |
|
Optimum heat transfer efficiency |
76 % |
|
Average particulate emission rate |
2.3 g/h |
|
Average CO |
69 g/h |
General features
|
Alcove installation approved |
Yes |
|
Mobile home approved |
Yes, with fresh air intake |
|
Certified according to applicable standards |
By an accredited laboratory (CAN/USA)
|
|
Overall dimension (Width) |
25 1/2" |
|
Overall dimension (Height) |
30 5/8" |
|
Overall dimension (Depth) |
28" |
|
Premium quality blower included (CFM) |
Optional |
|
Combustion technology |
Non catalytic |
|
Stainless-steel secondary-air system |
Yes |
|
Flue outlet diameter |
6" |
|
Distance-center of the flue outlet to back unit |
6 1/2" |
|
Distance-center of the flue outlet to side unit |
12 3/4" |
|
Recommended chimney diameter |
6" |
|
Type of chimney |
ULC-S629, UL 103 HT (2100 °F) |
|
Minimum chimney height |
12' |
|
Door type |
Single, glass with cast iron frame |
|
Door opening size (Width) |
17 1/2" |
|
Door opening size (Height) |
9" |
|
Glass type |
Ceramic glass |
|
Glass surface - W x H |
14 7/8" x 9 1/4" |
|
Steel thickness-body |
3/16" |
|
Steel thickness-top |
5/16" |
|
Firebox size (Width) |
21" |
|
Firebox size (Height) |
12" |
|
Firebox size (Depth) |
16 1/2" |
|
Log positioning |
Loading over width |
|
Maximum log length |
20" oriented East-West |
|
Firebox lined with refractory bricks |
Yes |
|
Baffle type |
High quality vermiculite |
|
High-efficiency certified appliance |
Yes, EPA 2020 approved |
|
Canadian Standard (emissions) |
CSA B415.1-10 |
|
USA Standard (emissions) |
EPA |
|
Canadian Standard (safety) |
ULC S627 |
|
USA Standard (safety) |
1482, UL 737 |
|
Warranty |
5 years limited |
|
Shipping weight |
365 lb (165 kg) |
Clearances
|
CLEARANCE |
SINGLE WALL PIPE | DOUBLE WALL PIPE |
|
Back wall |
11" | 6" |
|
Corner |
12" | 12" |
|
Side wall |
22" | 22" |
|
Base of the unit to ceiling |
84" | 84" |
