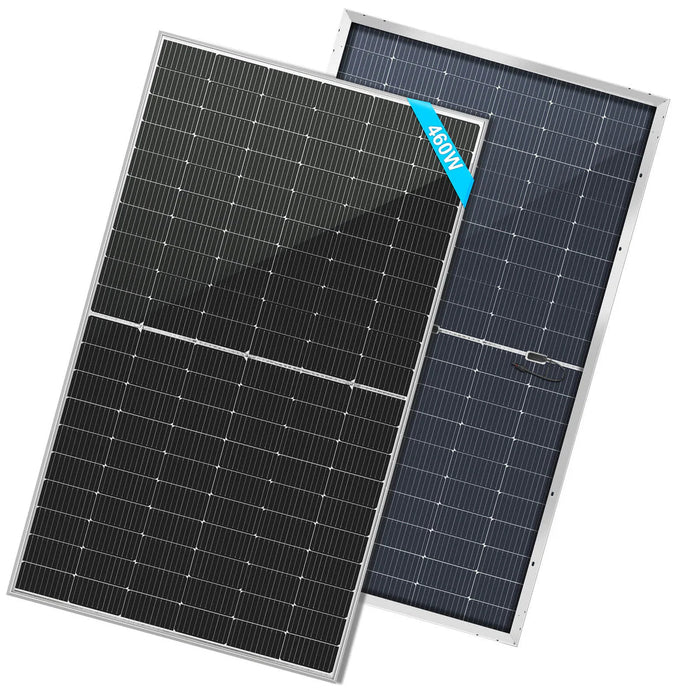

SunGoldPower 460 Watt Bifacial PERC Solar Panel SG-460WBG
SunGoldPower 460 Watt Bifacial PERC Solar Panel SG-460WBG
Product Description
Bifacial monocrystalline PERC solar panel can generate more energy up to 30%
Bifacial modules offer higher durability even rough climatic heat /cold/snow/wind
The space requirement for installation is less because of high efficiency
It can be set up at any angle. No need to analyse or calculate the right mounting and tilt angle.
25 Years Performance warranty and 30% residential Clean Energy Credit.
Features
Sungoldpower Bifacial solar panels are solar panels that can capture sunlight on both their front and back, it can generate up to 30% more energy than conventional solar panels, Bifacial solar panels are ideal for installations where the backside of the solar array is exposed and can capture reflected light, including ground-mount systems, solar carports and canopies.
Improved PV Module Performance under PartialShading Conditions
The panel features an innovative design of PERC, half-cut cells, bypass diodes and 11-busbar
technology to maximize energy output even under partial shading.
Specification
- Model Type SG-460WBG
- Peak Power (Pmax) 460W
- Production tolerance ±3%
- Maximum Power Current (Imp) 13.3A
- Maximum Power Voltage (Vmp) 34.5V
- Short Circuit Current (Isc) 14.13A
- Open Circuit Voltage (Voc) 41.75V
- Maximum System Voltage 1500V

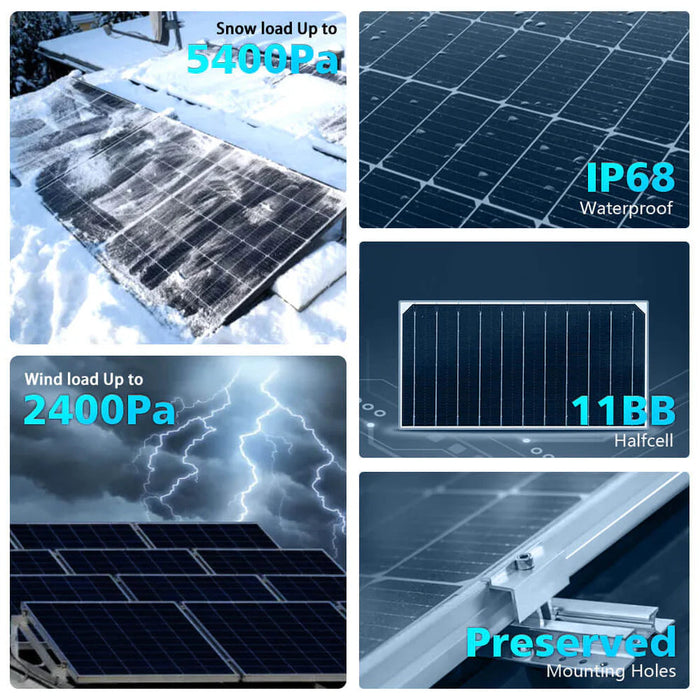

- Wind Resistance 2400Pa
- Output Cables 12 AWG (1ft per cable)
- Number of Cells 120(6x 20),60 cells in series
- Cell Type PERC Monocrystalline (7.2x 3.6 in)
- Certifications CE TUV
- Product Weight 60.5lbs

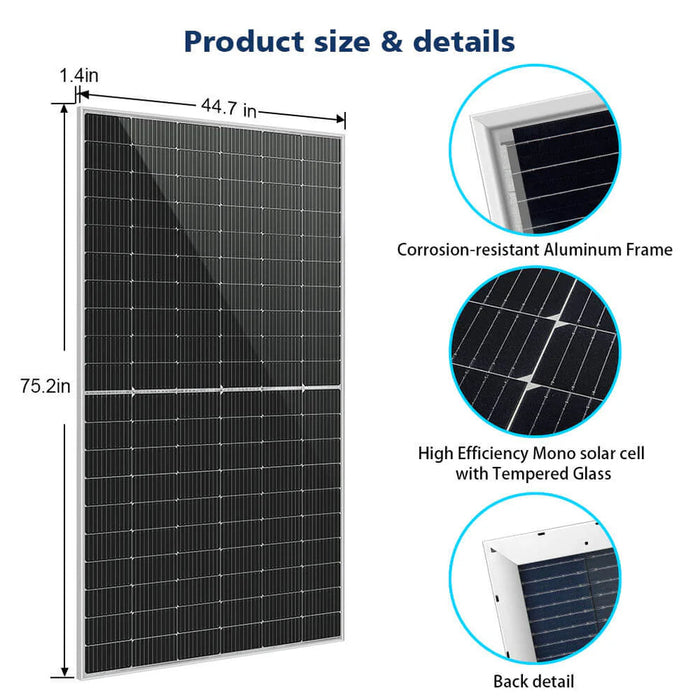

- Product Dimension 75.2*44.7*1.4inch
- Package Weight 130lbs（2PCS）
- Package Dimension 78.5*47.2*3.1inch（2PCS）

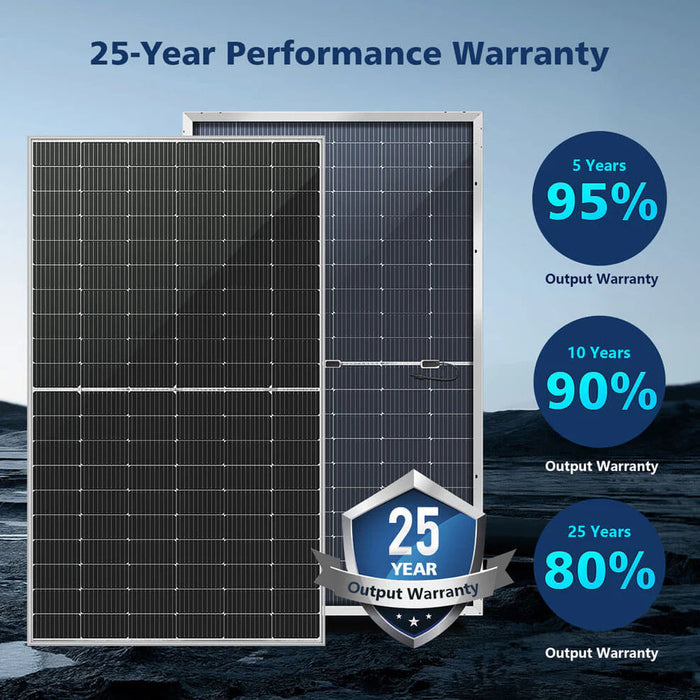

- Performance 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty
- Material and workmanship warranty 10 year material and workmanship warranty.UL 61730
