SKU EK25TLP
4 Wheel Forklift | Liquid Propane | 5000 lbs Capacity | EKKO EK25TLP
Precio original
€18.525,05
-
Precio original
€18.525,05
Precio original
€18.525,05
€18.525,05
-
€18.525,05
Precio actual
€18.525,05

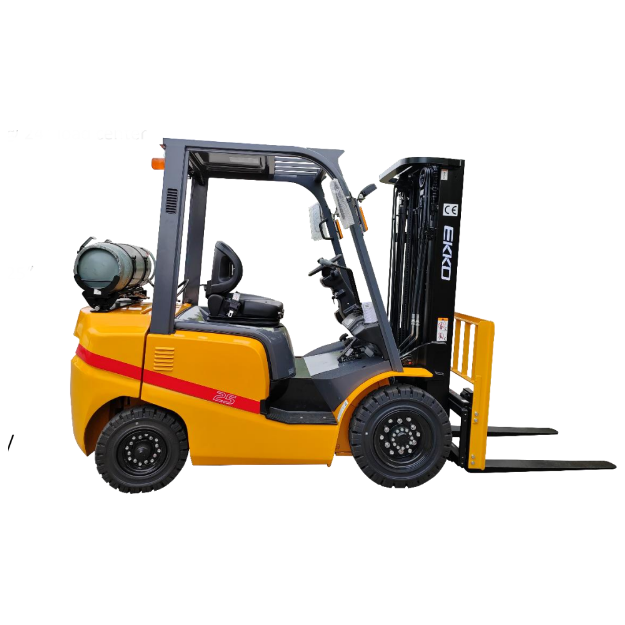

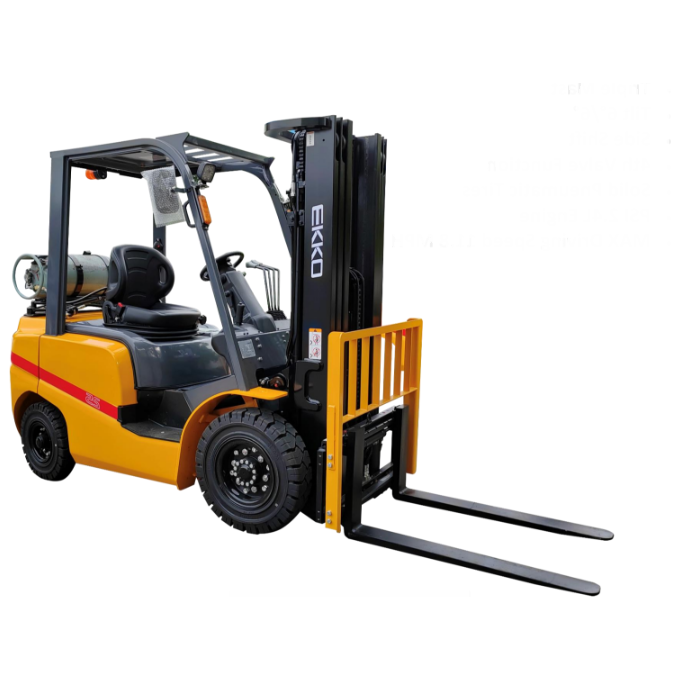

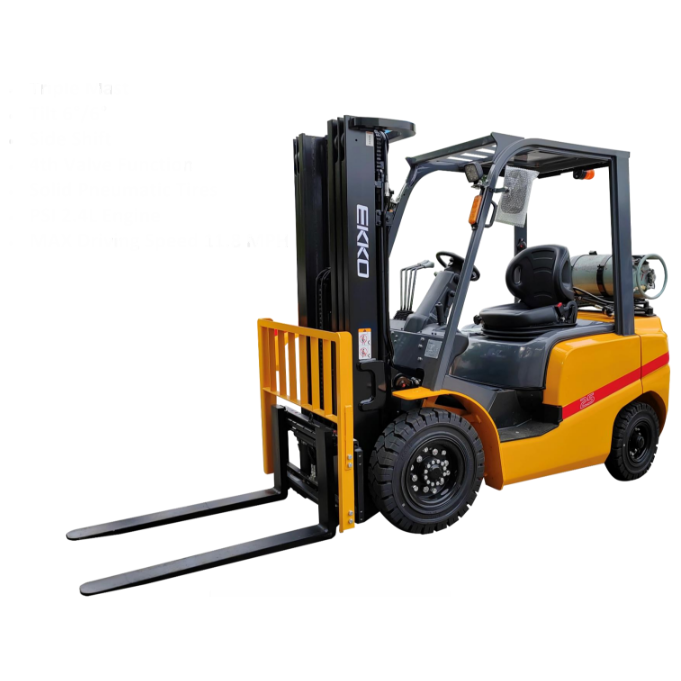

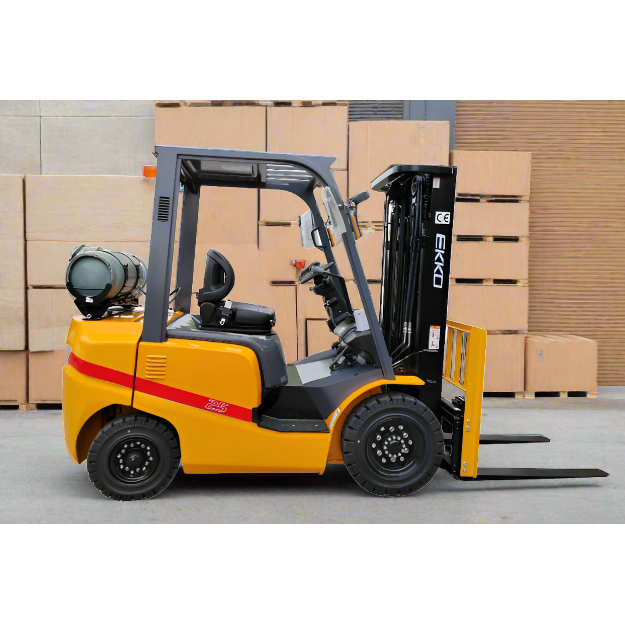

EKKO Liquid Propane 4 Wheel Forklift with Solid Pneumatic Tires 6000 lbs. Capacity EK25TLP
Product Description
The EKKO EK25TLP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the PSI 2.4l engine and competitive pricing.
- The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard's front leg
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and autombile type double combined switch effectively improve driving comfort level.
- Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
- Lowering damping device inside the lifting system reduces mast's shock and vibration, avoiding noise caused by goods falling to the ground.
- Small turning radius makes steering flexible and easy.
- with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
- The engine satisfies the CARB 4 regulation
Specifications
| Model | EK25TLP | |
| Drive type | LPG | |
| Type of operation | Propane | |
| Load Capacity | LBS | 5000 |
| Load Center | in | 24 |
| Lift height | in | 185 |
| Wheelbase | in | 62.9 |
| Service Weight | LBS | 8,465 |
| Tire material | Solid Pneumatic Tire | |
| Wheel | 7.00-12-12PR/6.00-9-10PR | |
| Service Brake | Hydraulic Floor Pedal | |
| Overall width | in | 45.2 |
| Overall length with forks | in | 144.6 |
| Overall length without forks | in | 99.6 |
| Min ground clearance (at the mast) | in | 4.3 |
| Max traveling speed (loaded/unloaded) | mph | 10.6/11.8 |
| Mast Overall height | in | 83 |
| Free lifting height | in | 43.7 |
| Overal Height w/ forks lifted | in | 225 |
| Fork Size | in | 42.1x4.8x1.5 |
| Battery | V/ Ah | 12/60 |
| Engine Mode | PSI 2.4 | |
| Engine rated power | HP/rpm | LPG: 63/2700 |
Technical Drawings
Notes:
Vertical axis represent load capacity:Horizontal axis show load center, Load center is determined from front face of the fork. Capacity based on 39.3'' cube load configuration with the center of gravity at the true center of the cube, and standard fork. The laod capacity will be reduced while the mast tilt forward or loading with long fork or lifting transformable width of goods. Getting the load capacities at the various load centers timely via the load curve.
Product Documents
