SKU EK30LP
Forklift | Liquid Propane | 6000 lbs. Capacity | Lift Height 189" | EKKO EK30LP
Precio original
€19.239,87
-
Precio original
€19.239,87
Precio original
€19.239,87
€19.239,87
-
€19.239,87
Precio actual
€19.239,87

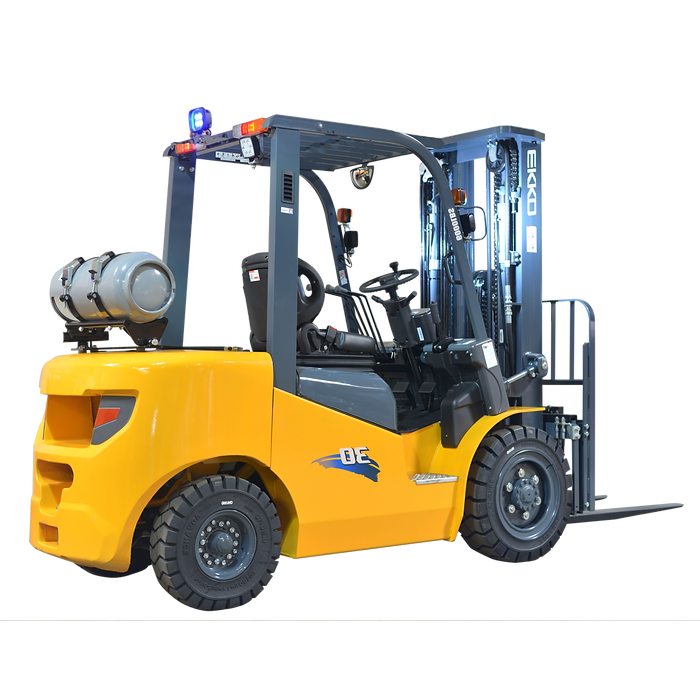

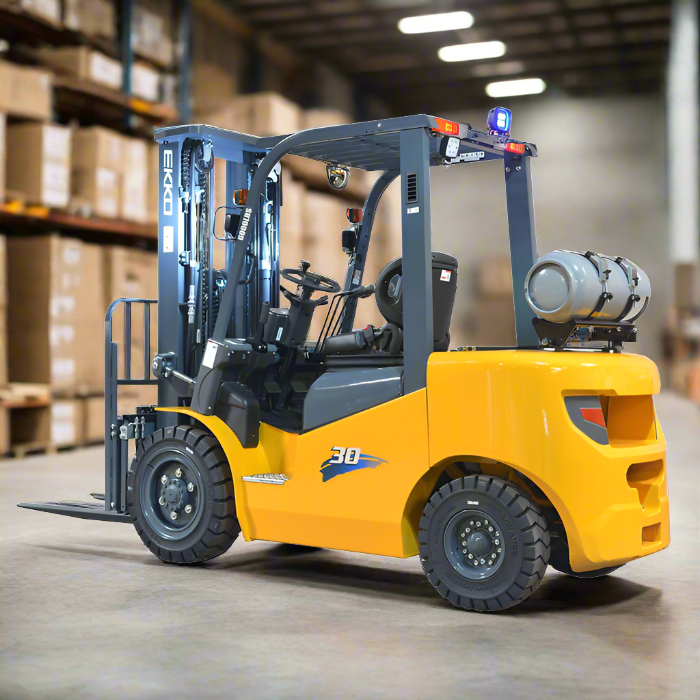

EKKO EK30LP Pneumatic Forklift (LPG) 6000 lbs cap, 189" Lift Height
Product Description
The EKKO EK30LP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the Kubota engine and competitive pricing.
- Multifunction instrument panel - motoring for Safety and efficient operation
- Operator compartment- nonslip entrance step, wider access & leg room.
- Adjustable steering column limiting operator arm and shoulder fatigue.
- Excellent Operator visibility.
- Integral Heavy-Duty Chassis- ensuring driver protection
- Steer axle pivots to 80 degrees for tighter turning radius.

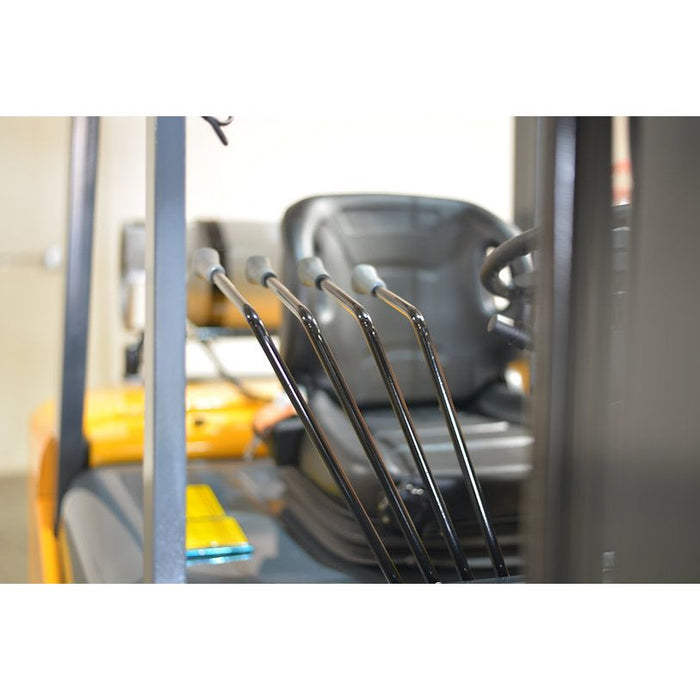

- Hydraulic controls
About EKKO Lifts
Specifications
|
Model |
EK30LP |
|
Drive type |
LPG |
|
Type of operation |
Propane |
|
Load Capacity |
6000 LBS |
|
Load Center |
24 in |
|
Lift height |
189 in |
|
Wheelbase |
69 in |
|
Service Weight |
10320 LBS |
|
Tire material |
Pneumatic |
|
Wheel size(Front / Rear) |
28x9-15-12PR / 6.50-10-10PR in |
|
Service Brake |
Hydraulic Floor Pedal |
|
Overall width |
48.2 in |
|
Overall length with forks |
150.3 in |
|
Overall length without forks |
108.2 in |
|
Min ground clearance (at the mast) |
4.53 in |
|
Max traveling speed (loaded/unloaded) |
11.8/11.8 mph |
|
Mast Overall height |
89.4 in |
|
Free lifting height |
40.9 in |
|
Backrest height (from the surface of the forks) |
46.54 in |
|
Fork Size |
42.13x4.92x1.77 in |
|
Battery |
12V 80Ah |
|
Engine Mode |
Kubota WG2503 |
|
Engine rated power |
LPG: 58.3HP 2600rpm |
