Heavy Duty Air Compressor | 200 psi | 12V | Oasis XDM3000-12

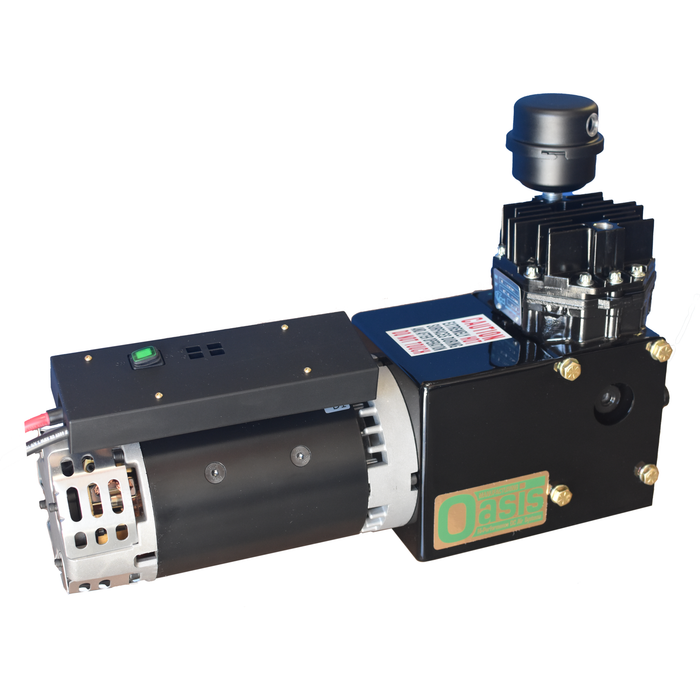

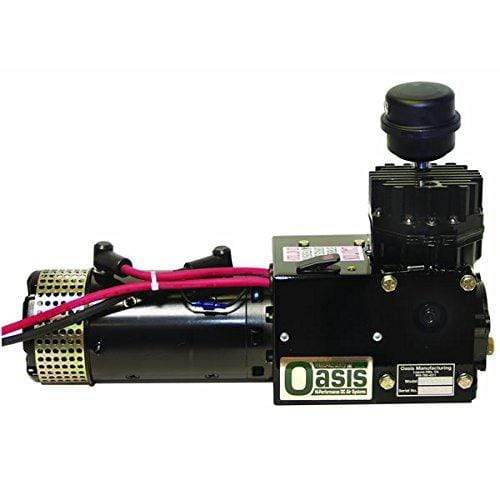

Oasis 12 volt Heavy Duty Air Compressor with SSR Control Module XDM3000-12
Product Description
The Oasis 12 volt Heavy Duty Compressor with SSR Control Module XDM3000-12 is a rugged and reliable solution for inflating tires and powering pneumatic tools on the go. With a robust design built for heavy-duty applications, it delivers high-performance air compression wherever you need it. Whether you're off-roading, working on construction sites, or handling industrial tasks, this compressor ensures quick and efficient inflation with its powerful 12-volt motor. Its durable construction and versatile functionality make it an essential companion for any adventure or job site.
This model combines all of the rugged 3000 series compressor features with a commercial grade, fan-cooled 12 VDC motor. It is ideal for extended run cycles.
Specifications
| Nominal Operating Voltage | 12 Vdc |
| Dimensions (L x W x H) |
21" x 7" x 11" |
| Net Weight (Lbs) | 62 |
| Motor Type | Series Wound |
| Operating Temperature Range | -20℃ (-4℉) to 65℃ (150℉) |
| Max Pressure | 200 psi |
| Max Restart Pressure | 150 psi |
| Current at Max Pressure (200 psi) | ≤ 190 amps |
| Flow Rate @ 100 psi | ≥ 8 cfm |
| Duty Cycle @ 100psi @ 21℃ (70℉) | 100% for 30 minutes, 50% thereafter |
Typical Performance (cold, at sea level)
| PSI | CFM | Current |
| 0 | 15 | 110 |
| 50 | 10 | 140 |
| 100 | 9 | 170 |

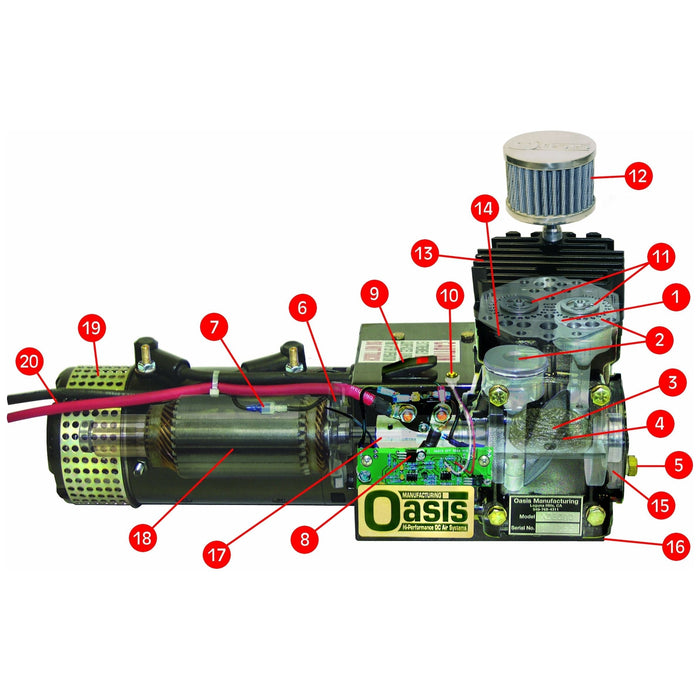

Features
- Direct Port Intake Design - Stabilizes airflow for maximum performance.
- Dual-Ring, Oil Control Pistons - Significantly reduces oil by into air supply.
- Oil Reservoir Chamber - Provides relief for crankcase oil transfer and expansion.
- Oil Reservoir Baffle - Acts as an air/lubrication separator.
- Oil Sight Glass - Offers a quick visual check of crankcase lubrication.
- Motor Cooling Fan - (XD3000) airflow through the motor reduces extended use heat build-up.
- Control Wire - Connection point for optional pressure switch and/or dash switch.
- Low Voltage Cut-off - "Smart" technology turns compressor off if voltage drops to protect motor.
- Power Switch - With indicator light.
- Low Voltage Indicator - Alerts when battery or system voltage is low.
- High Flow - Swedish Steel valves.
Air Filter - High-flow, long-life filter with serviceable element. - Deep Finned Heads - Dramatically reduces compressor operating temperature.
- York® Compressor - Modified, twin-cylinder, 10 cubic inch industrial unit.
- HD Roller Bearings - At both ends of crankshaft.
- Mounting Plate (optional) - Provides a direct drive connection.
- Heavy-duty Coupler - Provides a direct drive connection.
- 12 VDC Industrial Motor - Hi-performance, commercial duty.
- Motor Cooling Exhaust - Reduces motor heat buildup. (XD3000)
- Power Cables - 10' of #4 AWG cables.
Environmental Information
Unlike gasoline-powered compressors, Oasis dc air compressors have become the choice of many governmental agencies, municipalities, and maintenance fleets for good reasons..
- No exhaust fumes- Oasis air compressors are powered by clean DC electrical energy. Compressors that run on gasoline or diesel engines produce the exhaust fumes emitted into the atmosphere. In close-quarters these emissions pose a health hazard.
- Non-Polluting- Gasoline engines not only produce harmful exhaust emissions, but their fuel and oil can also pollute the environment as well. Compressors run on gas powered engines require frequent refueling, which means carrying gas containers on the job. Fuel spills and oil changes can contaminate soil and cause pollution.
- Low Noise- The irritating noise caused by loud engine exhaust disrupts the serenity of quiet neighborhoods, often resulting in complaints from residences and businesses. The sound emitted by Oasis compressors is limited to the whirl of the DC electric motor and the subdued flutter of the compressor pistons and valves.
- No Engine Maintenance- With Oasis, there are no gas-engines to maintain. No fuel filters to replace...no spark plugs to gap...and no carburetor to adjust.
Other Information
- Height varies with air filter options:
- 10.7" when Filter is remotely mounted using a 3/8 NPT Street Elbow
- 13.0" when Air Breather Assembly is mounted
