Pallet Fork | 10,000 lbs Capacity | Walk Through | Blue Diamond Attachments
SKU 314167

Pallet Fork | 10,000 lbs Capacity | Walk Through | Blue Diamond Attachments

€2.384,52 - €3.507,27
€3.507,27
€2.384,52 - €3.507,27
€3.507,27

Blue Diamond Attachments 10,000 lbs Capacity Pallet Fork Walk Through 314150

Product Description

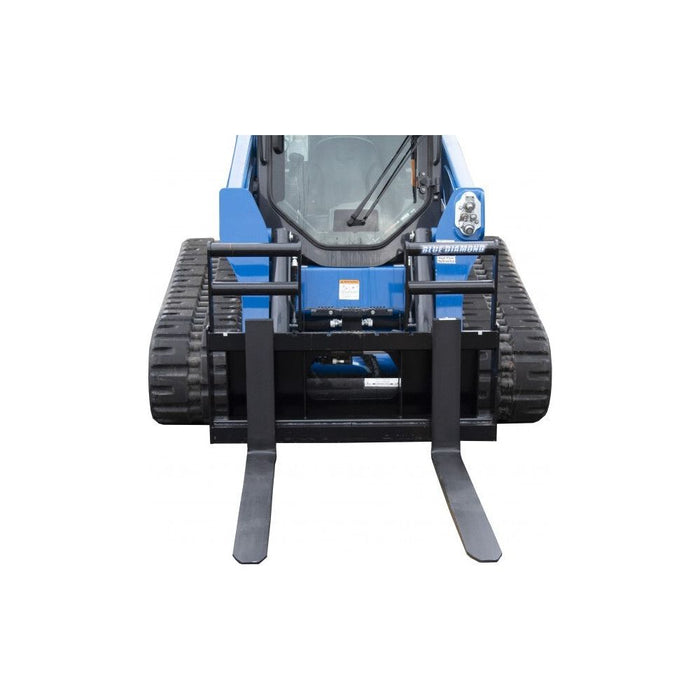

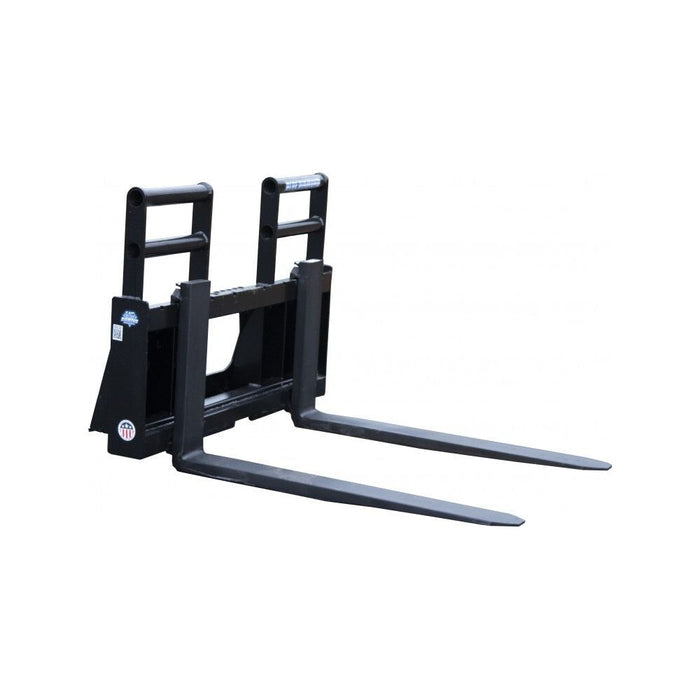

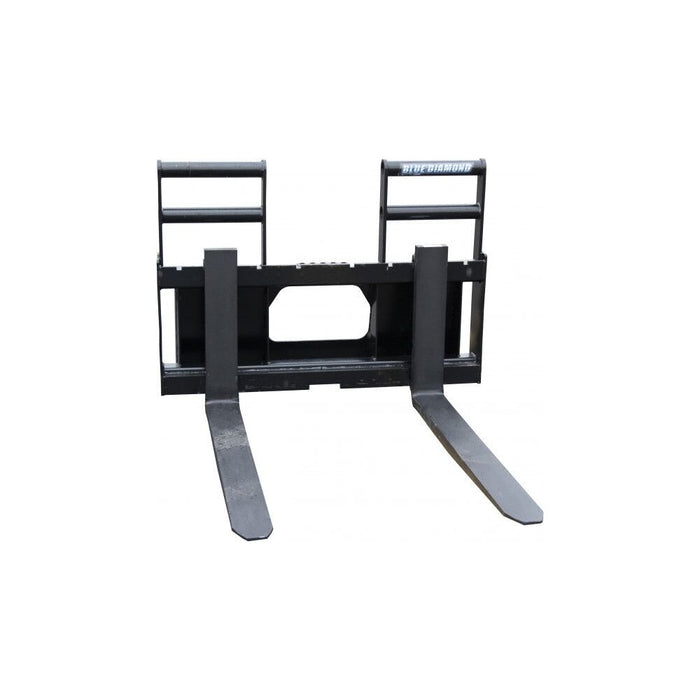

Our Blue Diamond® Class 3 Walk Through Pallet Forks are available to fit large frame track loaders and wheel loaders that have the skid steer quick attach. The cutout in the backrest offers easy cab entry for skid steers and also is designed to clear center linkage on wheel loaders. The Class 3 frame can accommodate a number of fork lengths from 48” to 96”.



Features

  • 10,000 lb capacity
  • 48” to 96” length tines available
  • Back rest design fits multiple applications
  • 50″ wide frame



Specification

Part Number Model Tine Size Lift Capacity Weight
314150 Walk Through, Class 3 48" X 1 3/4" X 5" 10,000 lbs 517 lbs
314152 Walk Through, Class 3 60" X 1 3/4" X 5" 10,000 lbs 579 lbs
314155 Walk Through, Class 3 60" X 2" X 5" 10,000 lbs 758 lbs
314160 Walk Through, Class 3 72" X 2" X 5" 10,000 lbs 828 lbs
314165 Walk Through, Class 3 84" X 2" X 5" 10,000 lbs 848 lbs
314167 Walk Through, Class 3 96" X 2" X 5" 10,000 lbs 875 lbs



Product Documents

Brochure
