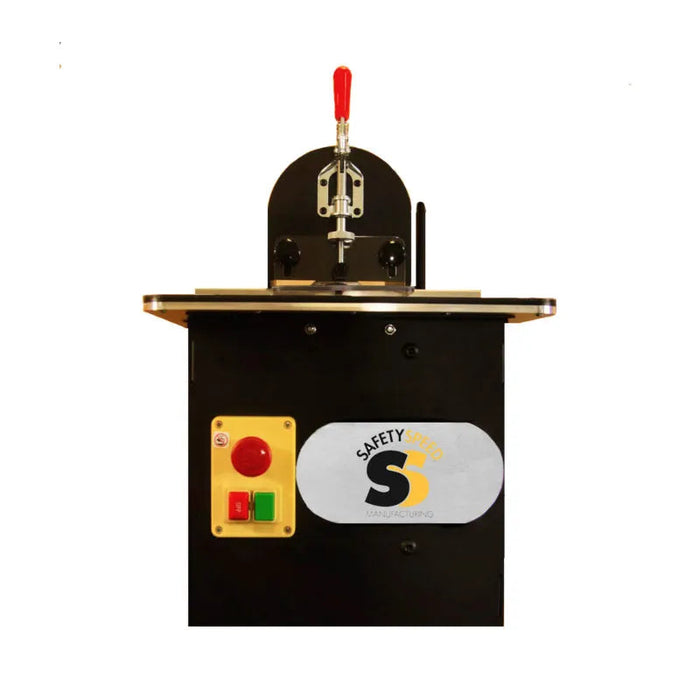

Safety Speed 6° Pilot Hole Screw Pocket Machine 66lbs Capacity SPM101EZ
Product Description
The SPM101EZ screw pocket machine drills a pilot hole while machining a six degree screw pocket with dual routers and an easy action lever. An “EZ” action lever allows operators to pocket as material allows in two movements, without the need for finding a neutral position.
Features
- Machining a 6° pilot hole and a screw pocket in one “EZ” motion.
- An “EZ” action lever allowing operators to pocket as quickly as desired
- Easily adjustable for different screw lengths
- Industrial built, yet 66lbs allowing for portability
- One switch that activates machine routers and includes emergency stops
Specifications
| Weight | 66 lbs |

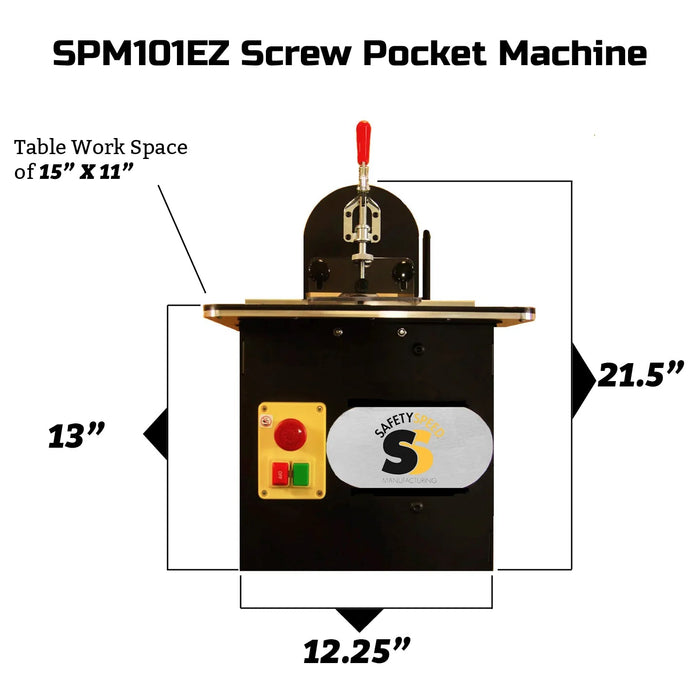

| Dimensions | 25 × 15 × 22 in |
| Router motor brand | DeWalt |
| Drill motor horsepower | 1HP |
| Router Collet diameter | 1/2" |
| Drill Collet diameter | 1/4" |
| Screw Pocket Angle | 6° |
| Model: |

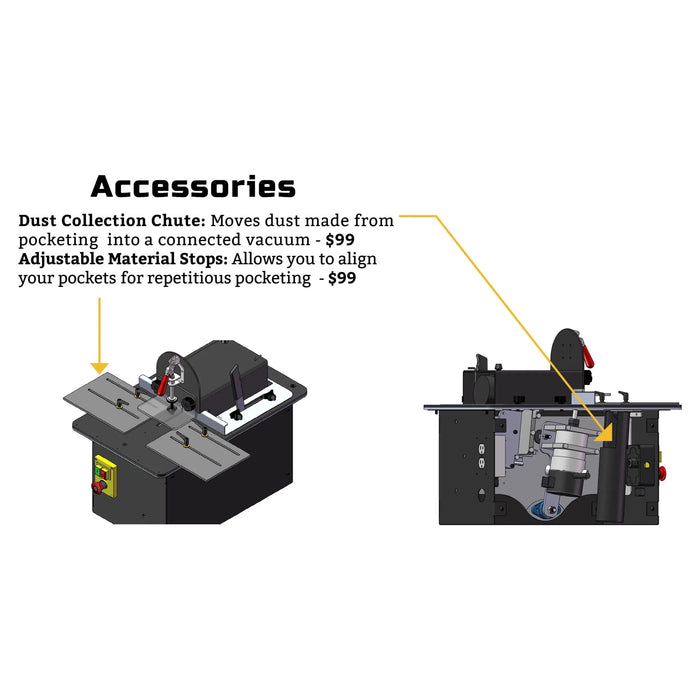

SPM101EZ Screw Pocket Machine, SPM101EZ Screw Pocket Machine with Table Stops, SPM101EZ Screw Pocket Machine with Dust Collection Chute, SPM101EZ Screw Pocket Machine with Table Stops and Dust collection chute
|
Product Documents
Product Manual
Catalog Page
SPM101EZ Sales Sheet
