Safety Speed 5' Frame Vertical Panel Saw with 50'' Maximum Crosscut 6480-20C

Product Description

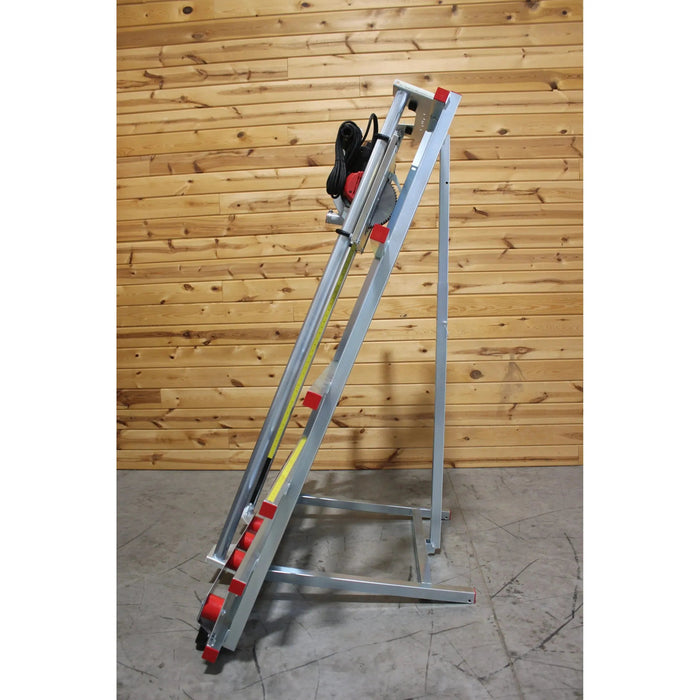

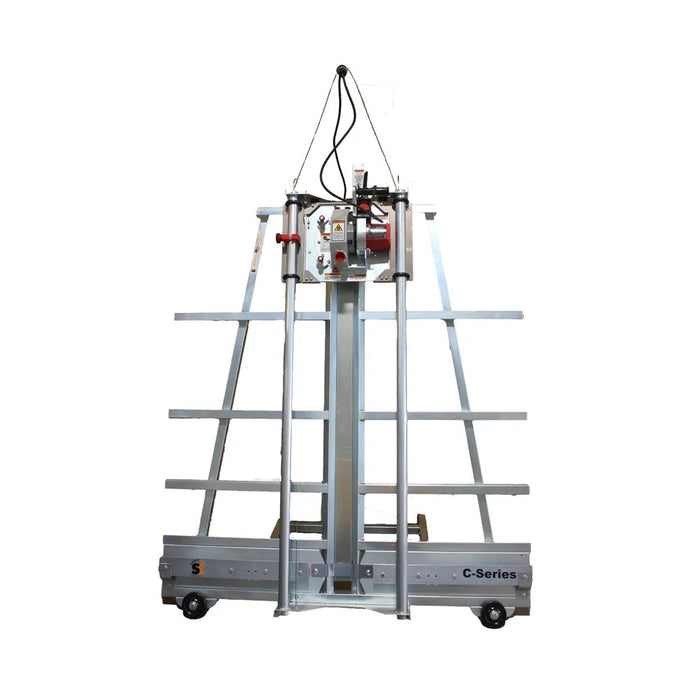

The 6480-20C is a compact panel saw with a 5’ frame, and a 50” maximum crosscut with a 96” rip cut capacity. Featuring a cut accuracy of 1/32″, and a 1.75″ cut depth, the 6480-20C is eerily similar to our C4 panel saw while having optional accessories built into the price.

A portable folding stand and wheels allowing for moving the panel saw around your shop as your day-to-day operations change,
General-purpose saw blade. a dust bonnet allowing you to set your machine up for collecting dust.]

The 6480-20C includes a 3.25 horsepower Milwaukee Tool motor. Optional accessories include a dust collection kit and vacuum for collecting as much dust as possible.

Standard Equipment

• 3 ¼ Hp, 15 amp industrial, Milwaukee Tool motor.
• Folding Stand

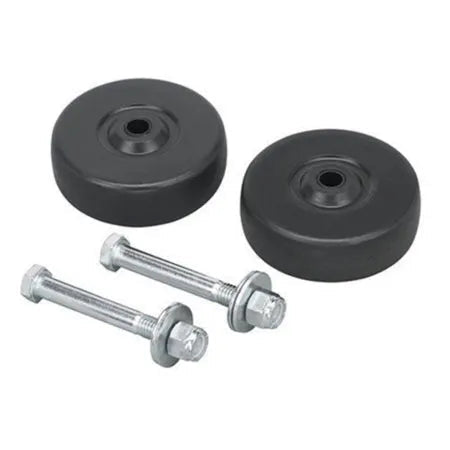

• Wheels
• Zinc plated 1 ¾” steel guide tubes.
• 4 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.

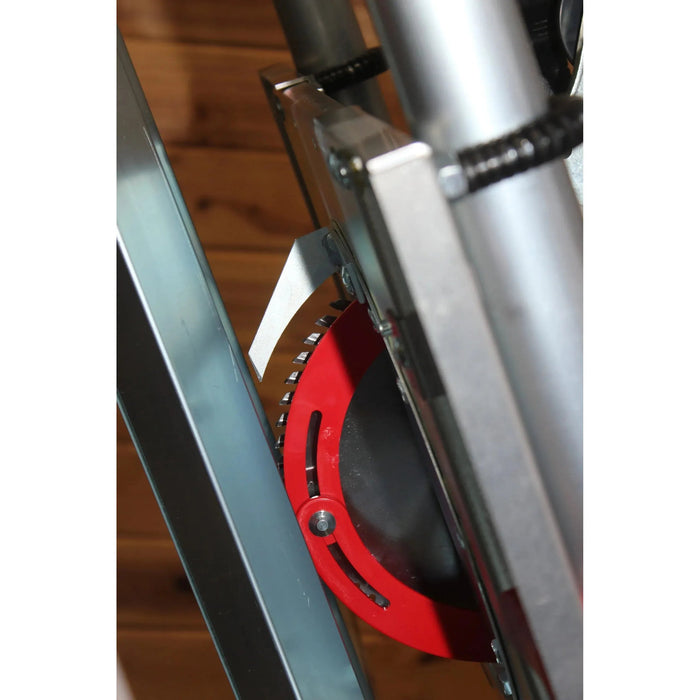

• Thin material pressure guard.
• Injection-molded plastic material rollers.
• Spring loaded counter balance system.
• Integrated dust collection bonnet.
• Extended warranty.
• TUV certified to UL/CSA standards
