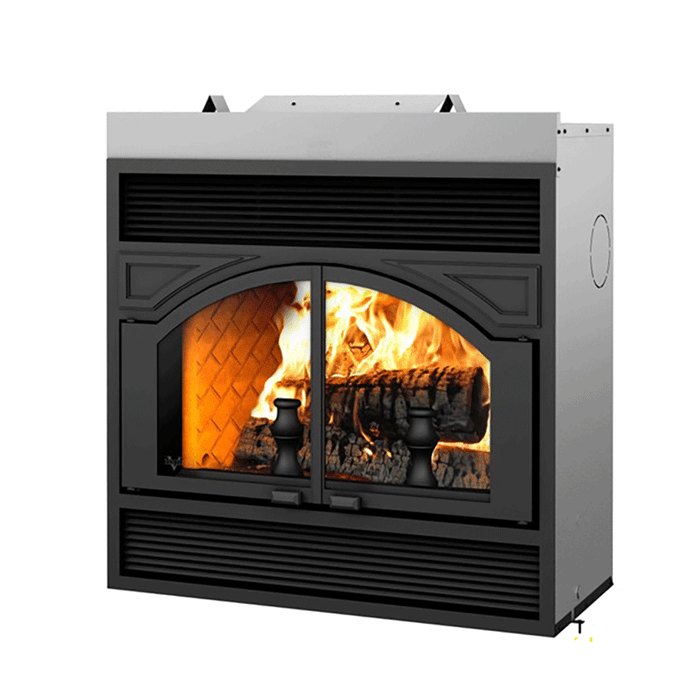

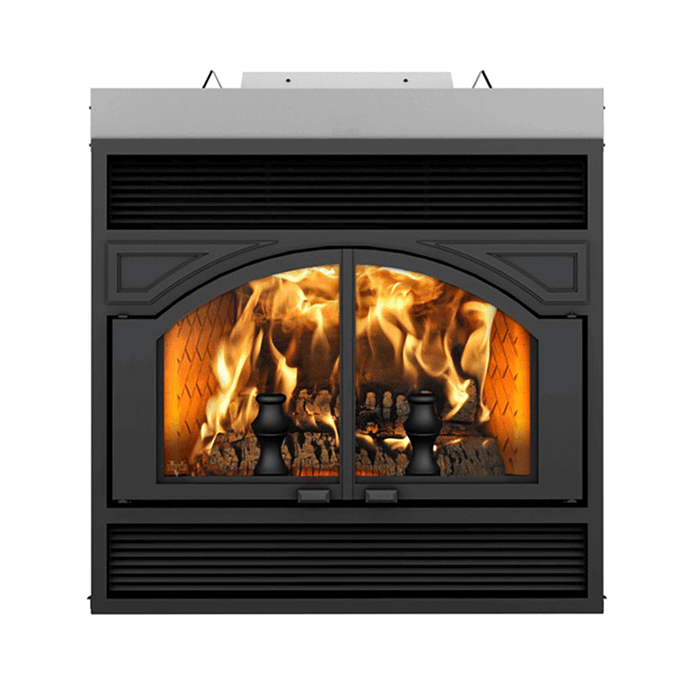

Ventis ME300 Wood Burning Fireplace, Zero Clearance VB00001
Ventis ME300 Wood Burning Fireplace, Zero Clearance VB00001
Product Description
The ME300 fireplace is designed for ambiance. It generates enough heat in the event of a power failure. The unit includes a blower for heat circulation and a firescreen to allow the enjoyment of an open fire.
Feature
- Designed mainly for ambiance; incomparable view on the flames
- Includes fire screen doors, 8" Ventis stainless steel anchor plate, fresh air intake adapter, and 176 CFM blower
- Firebox size: 4.25 sq. ft.
- Double-doors made of ceramic glass with cast-iron frame
- Heats up to 1,500 sq. ft.
- Flue size: 8"
- Minimum chimney height from base of fireplace: 15'
- Non-catalytic combustion technology
Appliance Performance
|
Fuel type |
Dry cordwood |
|
Recommended heating area |
Up to 1,500 ft² |
|
Overall firebox volume |
4.25 ft³ |
|
Burn rate |
> 5 kg/h (> 11 lb/h)
|
|
Average particulate emission rate |
2.9 g/kg |
- This appliance is officially tested and certified by an independent agency.
- Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
General Features
|
Premium quality blower included (CFM) |
176 CFM included
|
|
Certified according to applicable standards |
CAN/USA accredited laboratory
|
|
Flue outlet diameter |
8" |
|
Recommended chimney diameter |
8" |
|
Type of chimney |
ULC S604, ULC S629, UL S610, UL 103 HT (2100 °F)
|
|
Minimum chimney height |
15" |
|
Overall dimension (Width) |
41 1/8" |
|
Overall dimension (Height) |
43 5/8" |
|
Overall dimension (Depth) |
28 1/4" |
|
Door type |
Double, glass with cast iron frame
|
|
Door opening size (Width) |
30" |
|
Door opening size (Height) |
16 1/2" |
|
Glass type |
Ceramic glass |
|
Glass surface - W x H |
28 1/2" x 17 1/8" |
|
Firebox size (Width) |
23 1/8" |
|
Firebox size (Height) |
18 5/8" |
|
Firebox size (Depth) |
11 3/8" |
|
Maximum log length |
20" |
|
Log positioning |
Loading over width
|
|
High-efficiency certified appliance |
Exempt |
|
Canadian Standard (safety) |
ULC-S610 |
|
USA Standard (safety) |
UL 127 |
|
Shipping weight |
511 lb (232 kg) |
|
Combustion technology |
Non-catalytic |
|
USA Standard (emissions) |
ASTM 2515 / ASTM 2558
|
|
Canadian Standard (emissions) |
ASTM 2515 / ASTM 2558
|
Product Documents
Product Catalogue
Appliance Dimensions
Installation and Operation Manual
Fresh Air Intake Adapter Installation Instructions
