Kunz Engineering 48'' Cultipacker Till-Ease

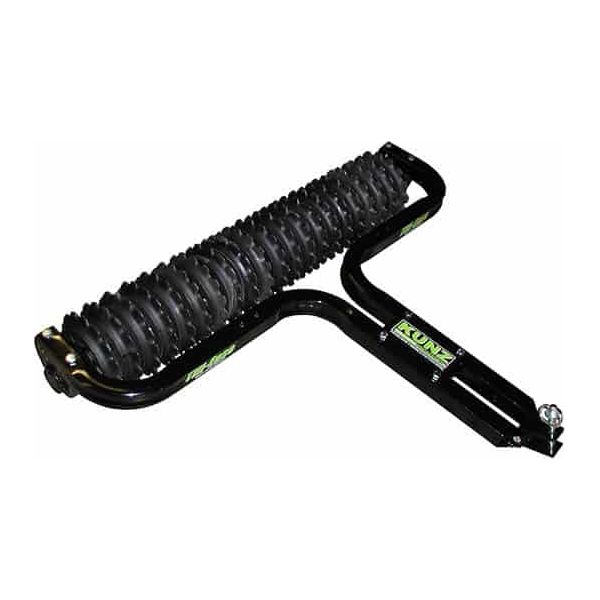

Kunz Engineering TP2148 48'' Cultipacker Till-Ease (Base Unit)

Product Description

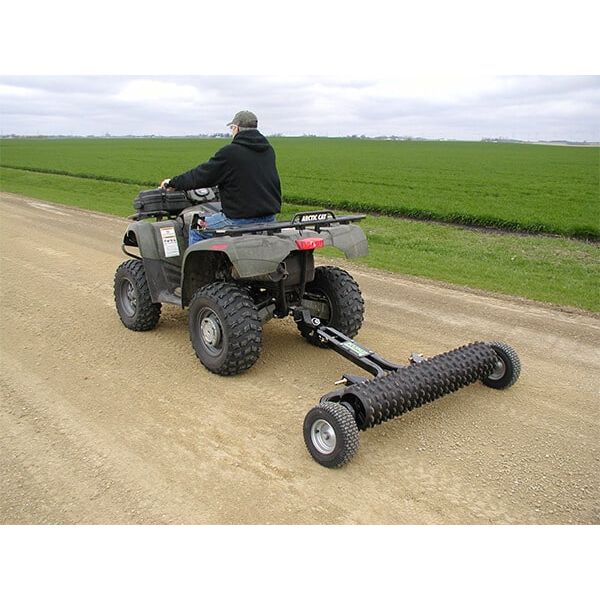

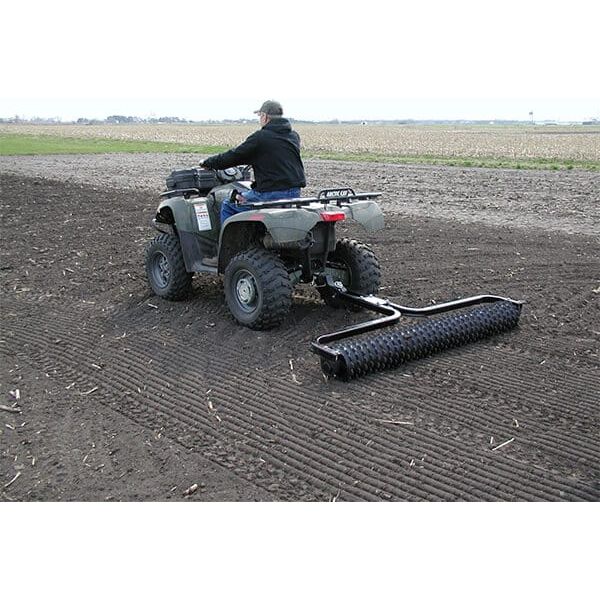

48″ wide all-in-one unit. Optional kits allow this Cultipacker to be mounted to an ATV/UTV or tractor, all within a matter of minutes. Simply pin to the hitch on an ATV/UTV or 3-point mount to a tractor. Great tool for providing the proper seed to soil contact. That translates to faster more dependable seed germination.

Features (specs, highlights, etc)

• 48″ Packer Width
• 21 Individual Cast Iron Packer Wheels
• Agricultural Grade Greasable Bearings
• Solid 1-3/4″ Steel Shaft
• Heavy Duty Structural Frame
• Optional Kits to Allow for Flip-Over Wheel Transport or 3-Point Tractor Mounting.

Features

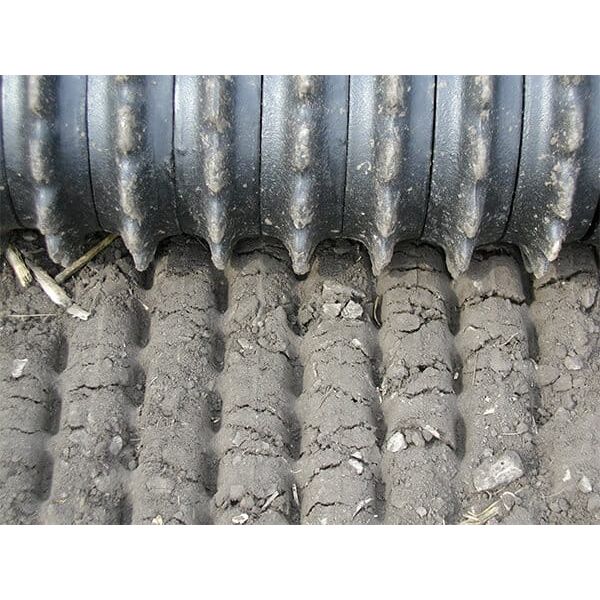

• The Model TP2148 features 21 individual agricultural quality packer wheels that are made out of cast iron. Each packer wheel is 9-1/2" in diameter and has crushing knobs that help to reduce clod size and create moisture retaining dimples in the soil.
• The packer wheels are mounted on a heavy duty 1-3/4" diameter solid steel shaft.
• Each end of the shaft is held in place with large agricultural grade bearings. These bearings are greasable and feature heavy-duty triple lip seals.
• Every Model TP2148 Cultipacker comes standard with a clevis and pin.

Specifications

• Tillage Tool Type: Cultipacker
• Transport Method

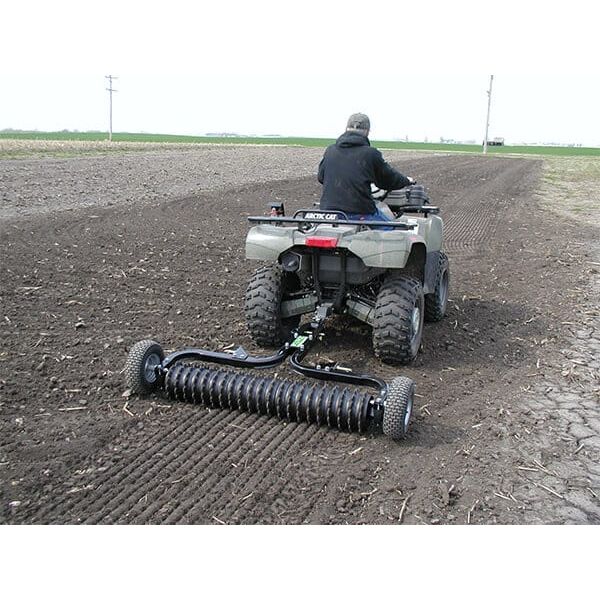

• Wheels – Flip Over Designs: Optional with Wheel Kit

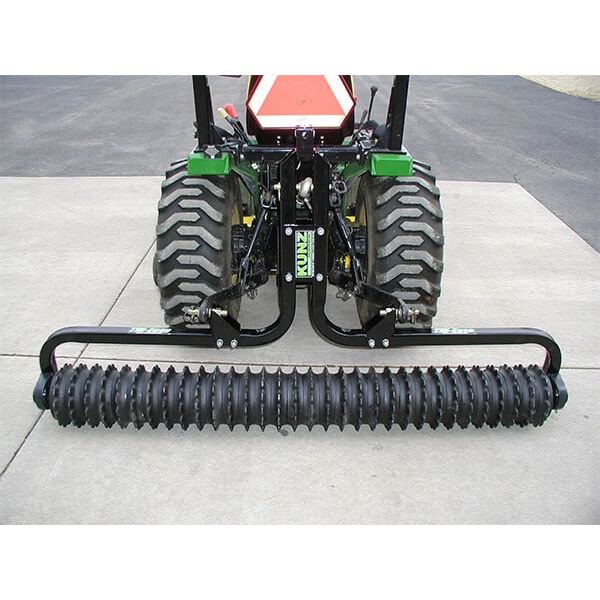

• 3-Point – Tractor Mount: Optional with 3-Point Kit
• Packer Wheels (Agricultural Quality): Cast Iron with Crushing Knobs
• Number of Cast Iron Packer Wheels: 21
• Packer Wheel Size: 9.5″ Dia.
• Packer Wheel Shaft Bearings: Greasable 1-3/4″ Pillow Block
• Width: 48″
• Tongue Hitch Method: Quick Remove Pin
• Pneumatic Tire (Included with Wheel kit): 13/500×6, 2 Ply Turf
• 3-Point Category (Included with 3-Point Kit): Category 1, Standard & Quick Hitch Compatible
• Weight: 257 lbs. (Std.), 272 lbs. (With Kits)
• Warranty: 1 Year Non-Commercial
