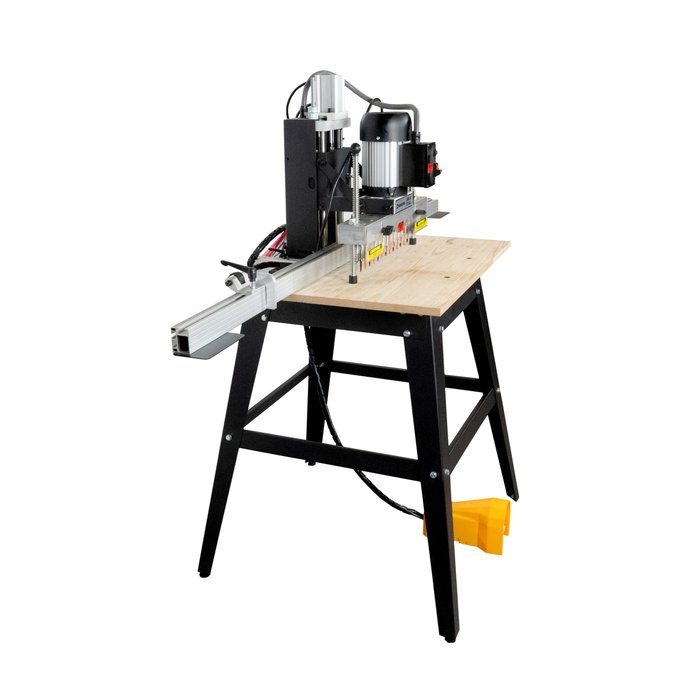

Maksiwa Line Boring Pneumatic 13 Spindle Line 1Phase 110V LBP.13
Product Description

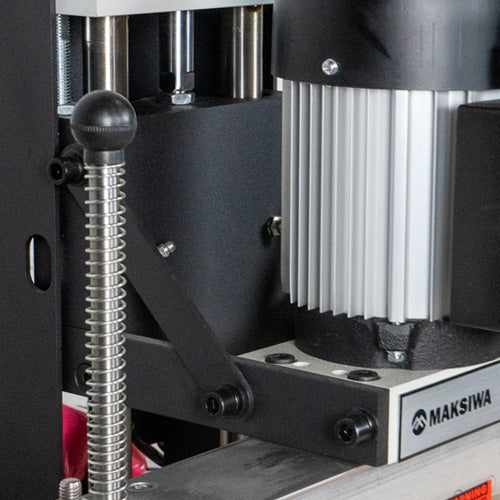

All the same great features of the Manual version with the addition of the pneumatic system, the LBP.13 has a lubricated aluminum head, heat treated steel gears, 1 HP motor, 13 stainless-steel spindles, extendable fence guide up to 89” and 2 fence stops.

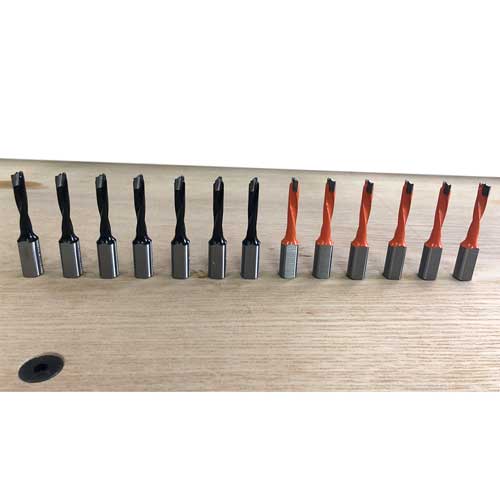

Drill Bits
Drill bits set included.
Indexing Pins

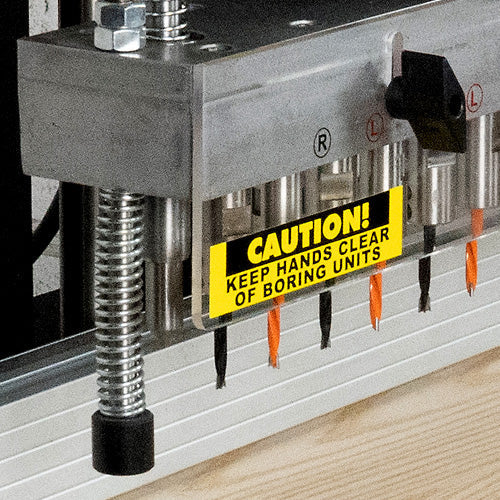

Step and repeat indexing pins (left and right).

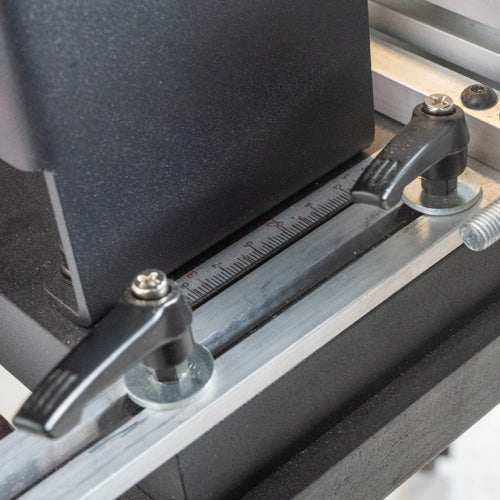

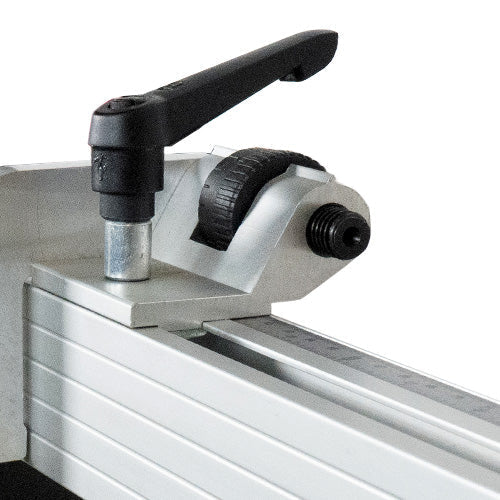

Adjustable X & Y Axis Flip Stops
Adjustable X & Y axis flip stops.

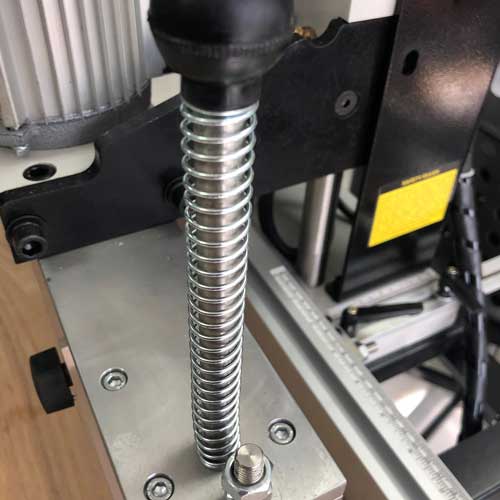

Spring Loaded Hold Downs
Perfect to fix the workpieces.
Specifications
| Technical Information | LBP.13 |
| Motor | 1HP 110V 1 Phase 10A 60 HZ |
| Prewired | 110 V, Single – Phase – 10 A / 5 A |
| Table Size | 31"x 15 1/2" |
| Spindle Speed | 3.450 RPM |
| Fence Stops | 2 |
| Expandable Fence Guide | Max 89" |
| Operation | Pneumatic |
| Floor to Table Height | 34" |
| Max. Depth of Stroke | 2.5" |
| Length of Fence | 61.5-5-91.5" |
| Number of Spindles | 13 (6 Left and 7 Right) |
| Distance Between Spindle Centers | 32 mm |
| Shipping Weight | 155 Lbs |
| Warranty | 2 years |
