Magnetic Sheet Metal Brake | Manually Operated | 1 Phaes | Baileigh Industrial BA9-1231891

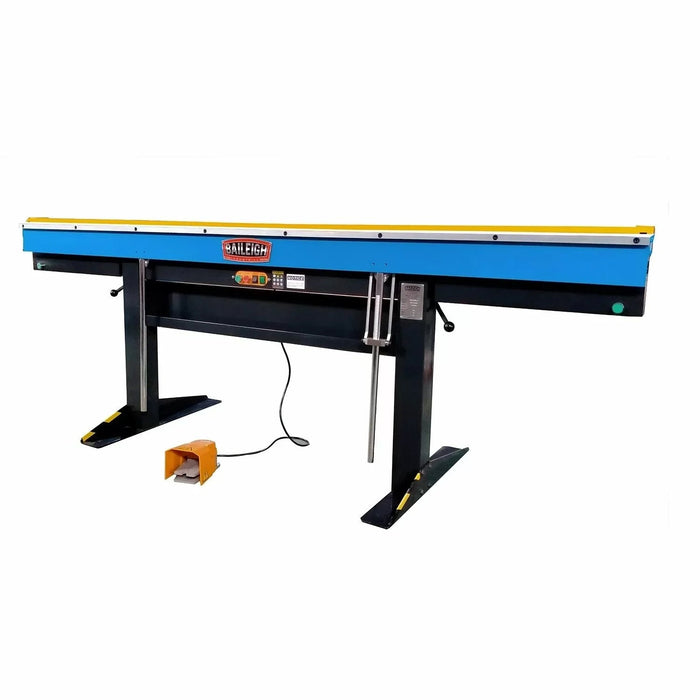

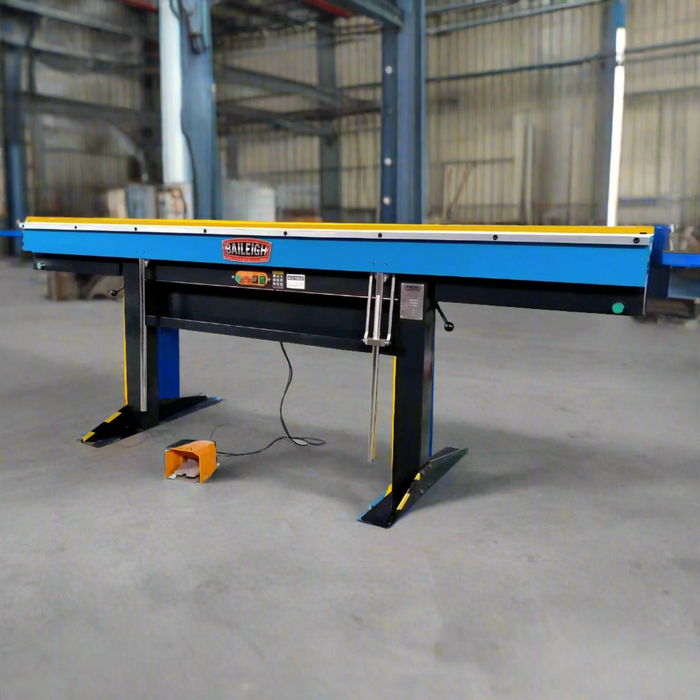

Baileigh Industrial BB-9616M 220V, 1 Phase Manually Operated Magnetic Sheet Metal Brake BA9-1231891

Product Description

An industry breakthrough, this electromagnetic box and pan brake lets you make fully-enclosed ducts—impossible on a traditional box brake.

Recommended for:

HVAC shops, industrial art shops, and general sheet metal fabrication shops.
Making ductwork, triangles, alternate bends on varying planes, round items such as scrolling applications, and much more.

IMPORTANT INFORMATION

To achieve proper performance and prevent damage to the machine, the power supplied must be 220VAC +/-5% (209VAC to 231VAC). Failure to comply will damage the machine and void the warranty.

Features

• Same open-ended design as our BB-4816M, but with twice the length (4 feet more)!
• Bending length of 8 feet (96”).
• 16 gauge mild steel maximum capacity
• Maximum bend angle of 180°.
• Industrial-strength magnet clamps the material between the work surface and the bending “clamp bar” or finger.
• Requires 220-volt single-phase power for the magnet.
• This electromagnetic sheet metal brake can bend boxes or pans to almost any depth, since it isn't reliant on conventional finger depths.
• Baileigh covers this magnetic sheet metal brake with a 1-year parts warranty.
• We keep most replacement parts in stock for speedy deliveries.
• Includes lifetime technical support by phone. Whenever you need troubleshooting or project advice, you can call a knowledgeable Baileigh rep.

Specifications

Product Document

Product Manual

Specifications
