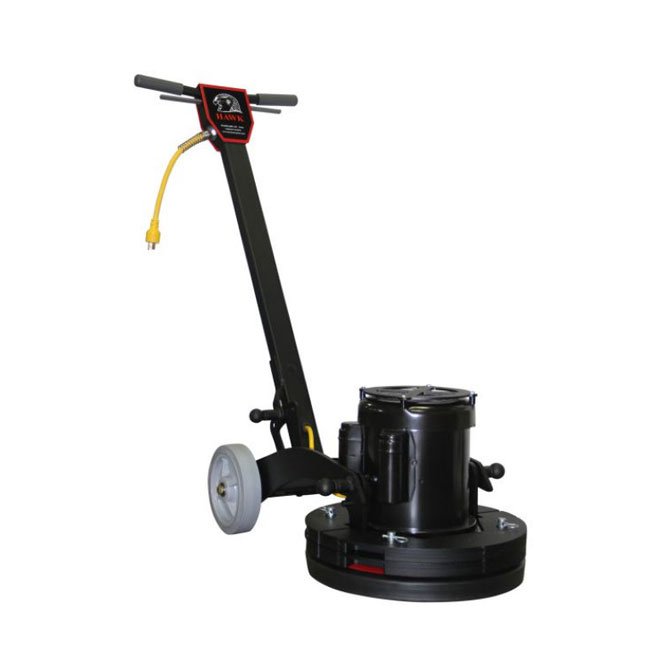

Merlin Floor Machine | 20'' | TECP | Hawk Enterprises F70-20-CP

Hawk Enterprises 20'' Merlin Floor Machine TECP Severe-Duty WD™ Industrial F70-20-CP

Product Description

Merlin floor machines are built for high productivity in harsh environments like concrete resurfacing and natural stone polishing.   The unique “Floating Head” WD™ Wheels Down design provides 100% contact with the floor and perfect operator control.

Easier operation and faster production times are what sets this unit apart from standard rotary designs. Heavier work with less energy. Breaks down into multiple pieces for moving by a single person.

• The 100% steel construction is accented with two exteriors

• Merlin TECP – Chrome motor with powder-coated brush cover

Power

• 1.5 HP, 180 frame TEFC dual capacitor AC motor
• 115-230V, 60 Hz power (50 Hz optional)
• 50 ft., (12-3) 2-piece industrial  power cord with twist lock
• Triple-planetary XHD 11:1 helical-cut industrial gears drive pads, drive pads, brushes, diamond tools at 165 RPM

Engineered Design

• Handle disassembles for easy transport and storage
• All steel construction with welded “Floating Head” frame
• Heavy-duty powder-coated steel handle with 5-position pin lock
• The heavy duty motor guard protects from impact damage
• Thumb-operated safety switch
• Dual steel operating triggers
• Negative pressure on/off switch
• 2” x 8” non-marking load bearing, ball bearing wheels
• Includes 80 lb. weight set
• Optional 28 lb. carriage weight kit
• Optional 4 gallon solution tank
• Optional 6 gallon solution tank

Safety Features

• Quiet 66 dB operation. Meets GS 42 standard
• UL/CUL listed

Specifications

All Sizes

Product Documents

Spec Sheet Merlin WD Floor Machine
User Manual Merlin WD
