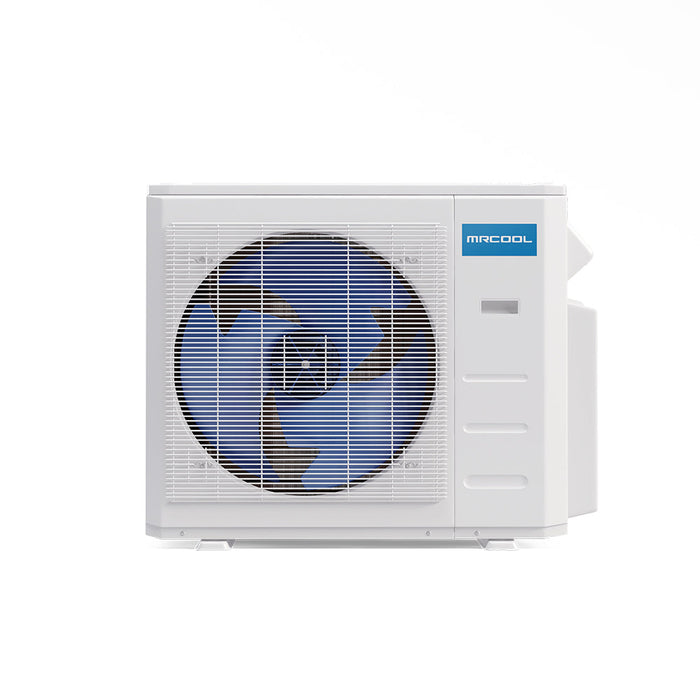

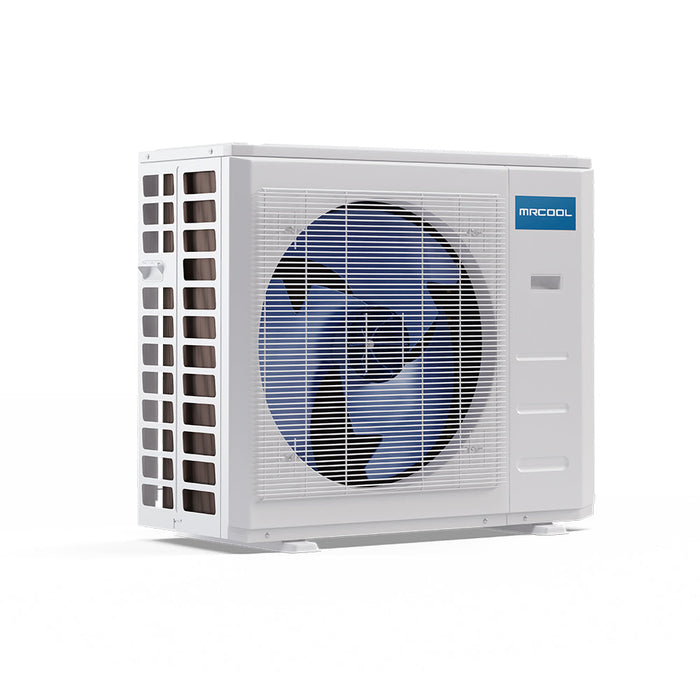

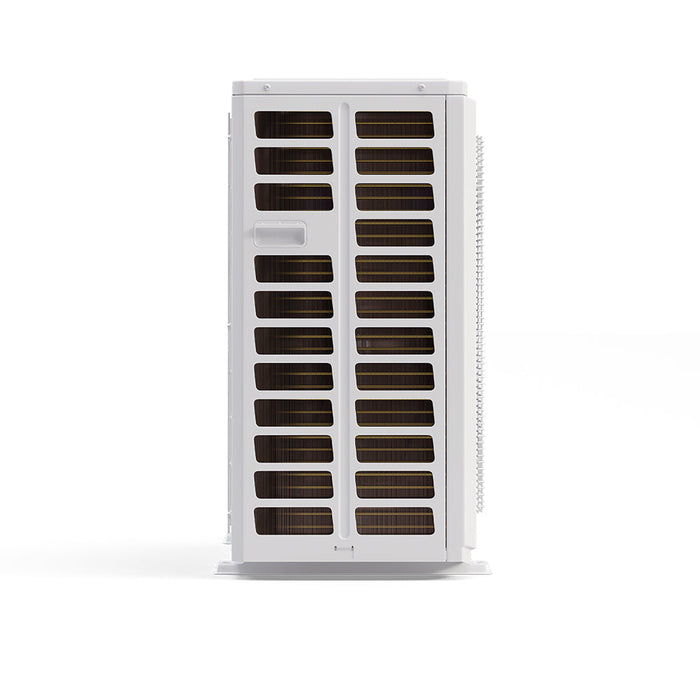

MRCOOL DIY 4th Gen Multi-Zone 4-Zone Ductless Heat Pump Condenser DIY-MULTI4-36HP230C
MRCOOL DIY 4th Gen Multi-Zone 4-Zone Ductless Heat Pump Condenser DIY-MULTI4-36HP230C
Product Description
The 4th Generation MRCOOL® DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations.This condenser has the ability to support up to 4 zones and, when paired with select MrCool air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion. MrCool stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets are precharged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete. The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.
- Up to 21 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Specification
- SEER 21.5
- EER 10.5
- HSPF hspf4/hspf5 : 11/8.5
- CFM 2147.06
- COOLING CAPACITY 36000 BTU
- HEATING CAPACITY 36000 BTU
- VOLTAGE 208-230 V
- PHASE 1
- CYCLE 60 Hz
- MAX FUSE BREAKER 45 A
- MIN CIRCUIT AMPACITY 27 A
- COLOR White
- COLOR FAMILY White
- ZONE CAPACITY Up to 4
- REFRIGERANT TYPE R-410A
- REFRIGERANT VOLUME 134.04 oz
- DECIBEL RATING 65 dBA
- INVERTER Yes
- MIN AMBIENT COOL 5F ~ 122F
- MIN AMBIENT HEAT -13F ~ 75.2F
- MAX LINESET LENGTH 196.85 ft TOTAL
- LIQUID LINE SIZE 1/4in
- SUCTION LINE SIZE 3/8in+1/2in
- COMPRESSOR MOTOR TYPE Rotary
- CONDENSER FAN MOTOR RPM 1000/900/750
- WIFI COMPATIBILITY Yes
- APP COMPATIBILITY Yes
- WORKS WITH IOS Yes
- WORKS WITH ANDROID Yes
- REGISTERED WARRANTY Limited Lifetime Compressor
- BASE WARRANTY 5-year Parts/7-year Compressor
- BASE PARTS WARRANTY 5-year Parts
- REGISTERED COMPRESSOR WARRANTY Limited Lifetime Compressor
- BASE COMPRESSOR WARRANTY 7-year Compressor
- CONTAINS ELECTRONICS Yes
- CONTAINS CHEMICALS Yes
- CONTAINS AEROSOL Yes
- CONTAINS COMPRESSED GAS Yes
- PROPOSITION 65 WARNING Yes
Weight and Dimension
- NET DEPTH 16.14 in
- NET HEIGHT 31.89 in
- NET WIDTH 37.24 in
- NET WEIGHT 170.42 lbs
- GROSS DEPTH 19.88 in
- GROSS HEIGHT 35.04 in
- GROSS WIDTH 42.91 in
- GROSS WEIGHT 187.83 lbs
